DENSO PROJECT

โรงงาานผลิตชิ้นส่วนรถยนต์และแบตเตอรี่
img-S0015

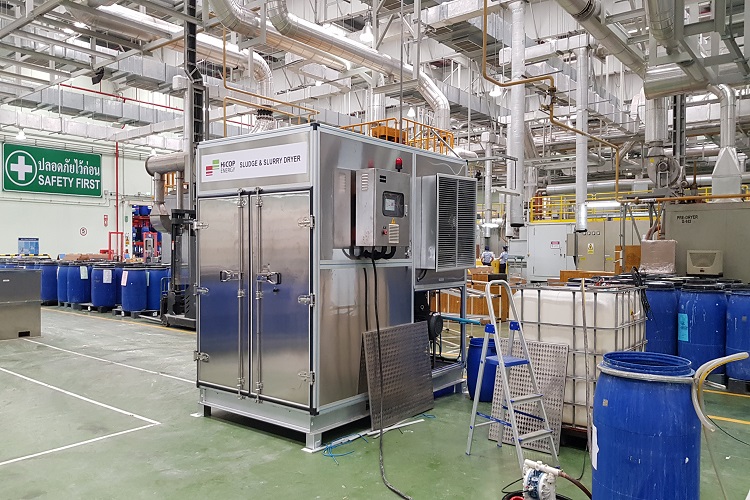

DENSO PROJECT

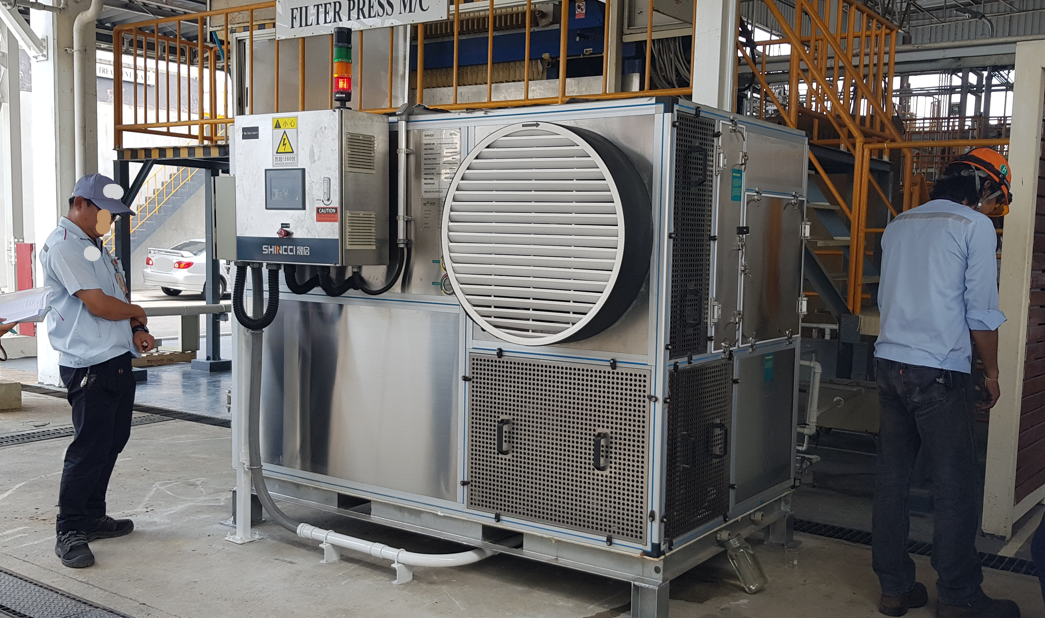

Container-type Sludge Dryer

------------------------------------------------------------------------------------

  1. Shincci™ Container units with a water evaporation capacity between 8 and 46 kg/h.
  2. Use electricity only; plug and use.
  3. 60~70C°drying temperature.
  4. Closed cabinet drying and no tail gas emission, friendly to neighborhood.

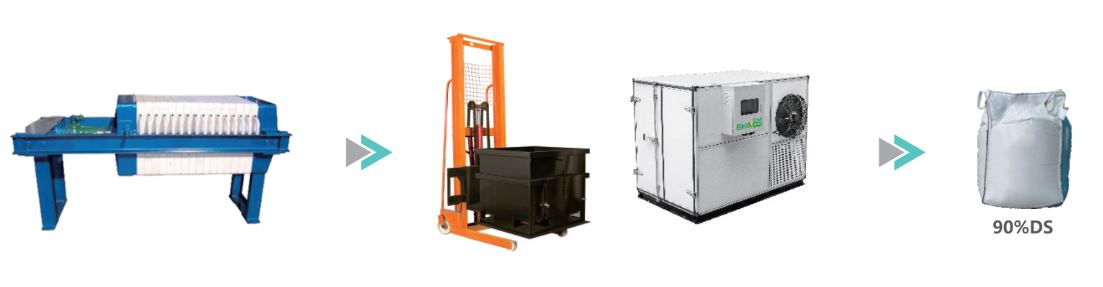

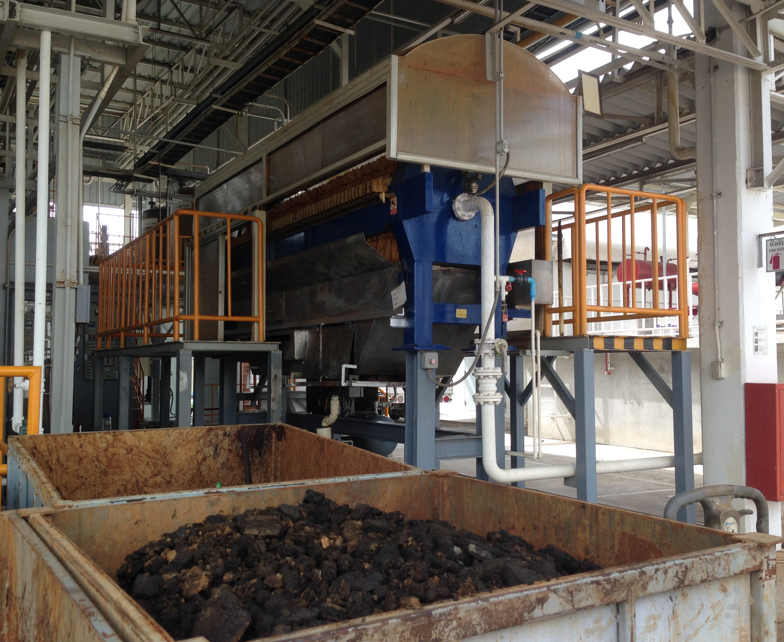

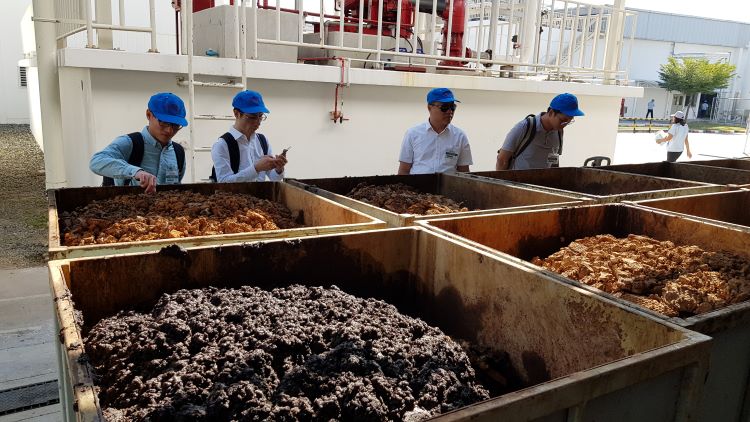

Shincci Low temperature container type sludge dryer is specially suitable for dewatered sludge coming from chamber filter press, drying sludge from initial moisture range 83%~40% to achieve 10~40%. The drying temperature is 60~75℃, which makes high drying efficiency. Forced air cooling makes it no need for additional mounting of cooling water and water consumption. Closed cabinet structure makes less heat dissipation and less odor emission. Accurate humidity control technology avoids high energy consumption in later stage of drying.

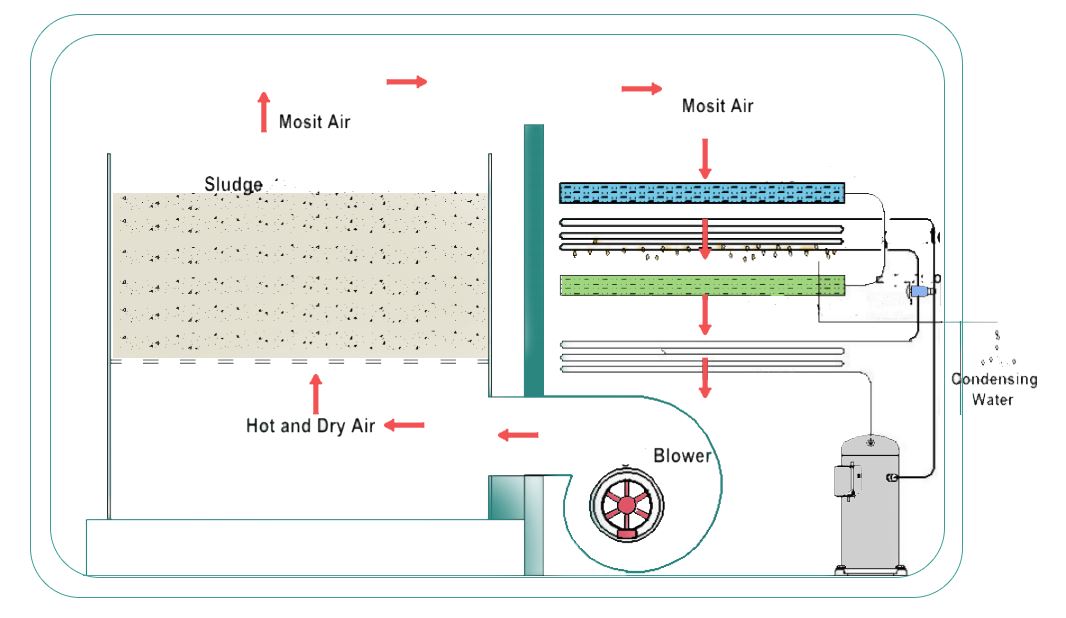

It is a combination of sludge hopper and dehumidification heat pump. Dehumidification heat pump heat up and dehumidify the air, while the sludge is placed into a hopper. The hot air is blow up from the bottom and recycle at the heat pump. The electricity power consumption is 0.4~0.5kw.h/kg.H2O.

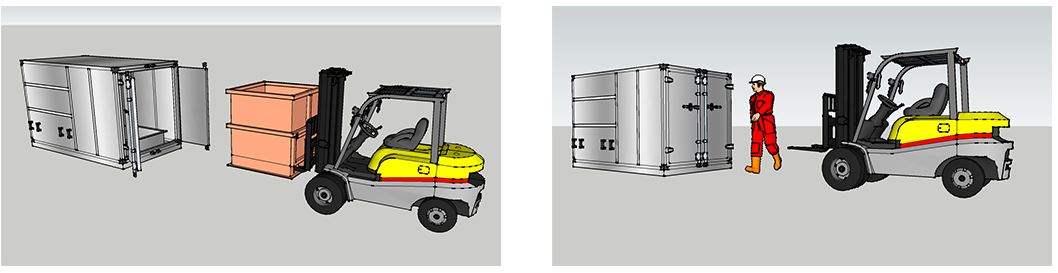

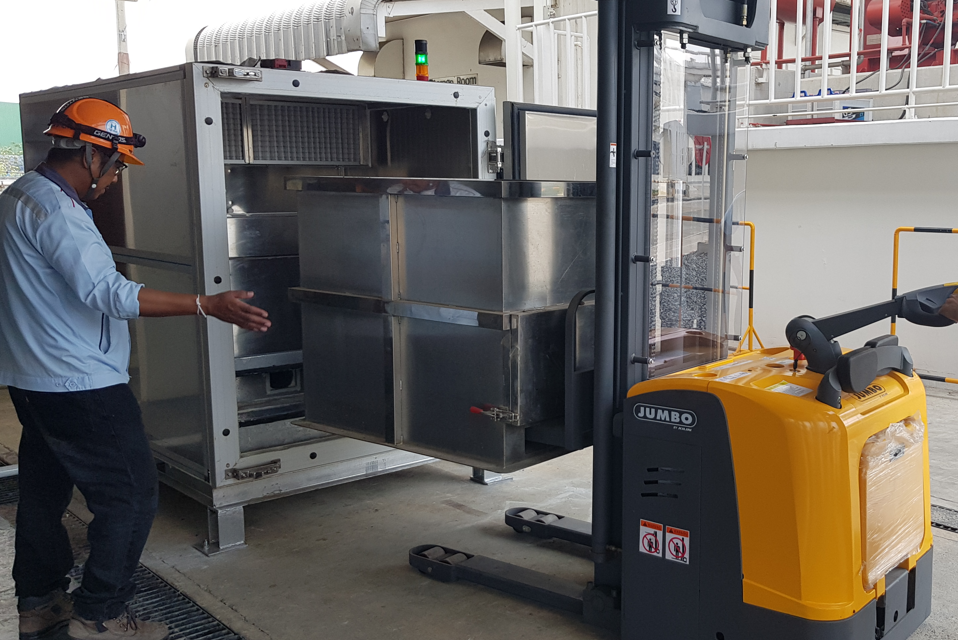

The container dryer is operated in a batch mode. After we plug on the machine and load the sludge, it is ready to start to dry the sludge. The dryer is using timers to control the batch operation time. So it is easy to install and use without frequent monitor.



Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

Powered by Froala Editor

สนใจข้อมูลเพิ่มเติมติดต่อ

บริษัท ไฮคอพ เอ็นเนอร์ยี่ จำกัด

คุณธรรมรัตน์ (เอก)

โทร. 098-3542464

Line id : Ake2464

ผู้แทนจำหน่ายในประเทศไทย
